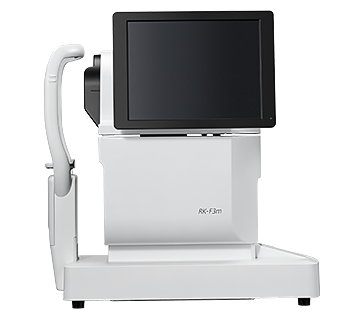

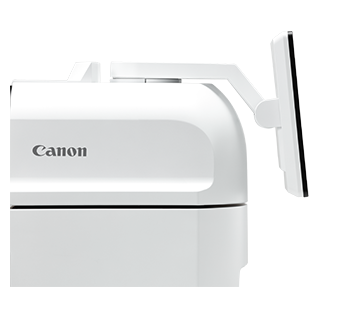

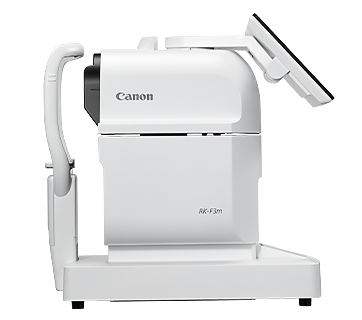

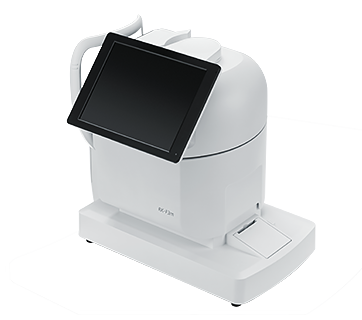

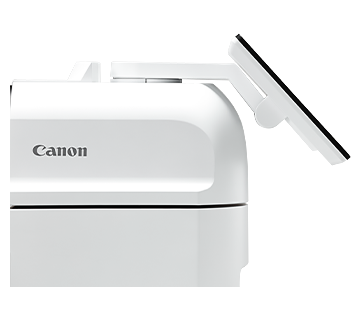

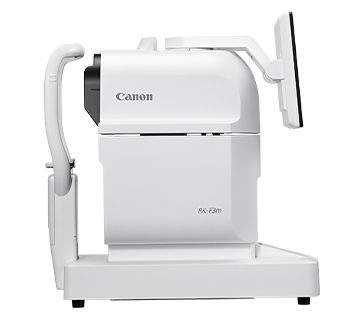

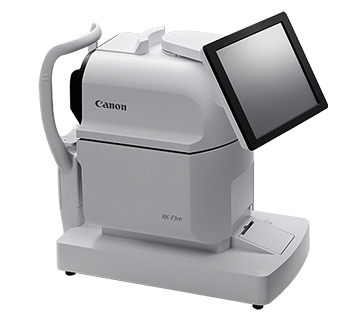

RK-F3m
RK-F3m
One-touch smooth operation for accurate, automatic measurement of both eyes.
Key Features
Features

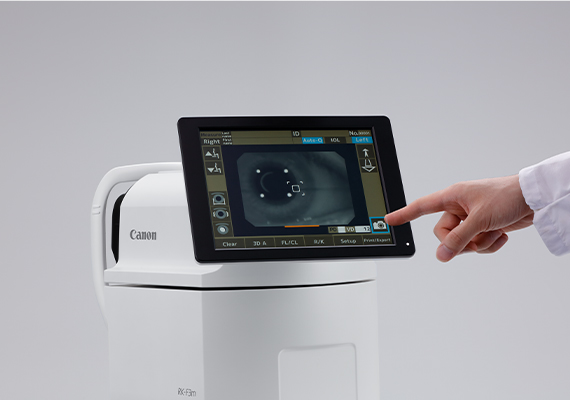

Easy Operation with Large LCD Monitor
10.4-inch touch panel colour LCD provides easy viewing of alignment and measurement results, making measurements a breeze.

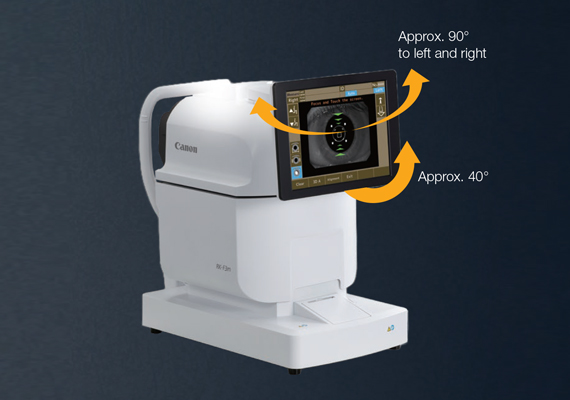

Flexible Examination Layout
Tilt and rotatable LCD monitor, allowing flexibility in operation suitable for multiple examination layouts.

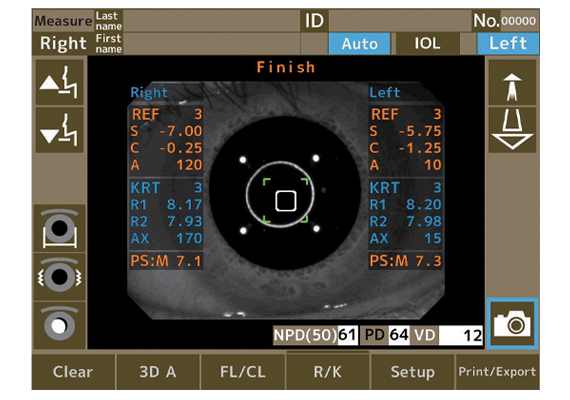

Multiple Measurement Modes
- Improved verification of refractive power and accommodation mode.
- Retroillumination mode with auto gain.
- Wide range of available VD values.
Specifications
Specifications
Refractive Measurement Range |
|
Sphere (SPH) |
-30 to +22 D (VD: 12 mm) (step: 0.01/0.12/0.25 D) |
Cylinder (CYL) |
0 to ±10 D (VD: 12 mm) (step: 0.01/0.12/0.25 D) |
Axis Angle (AX) |
0° to 180° (unit: 1°/5°) |
Corneal Vertex Distance |
0 mm/10 mm/12 mm/13.5 mm/15 mm |
Minimum Pupil Diameter |
Φ2.0 mm |
Corneal Measurement |
|
Corneal Curvature Radius |
5 to 10 mm (step: 0.01 mm) |
Corneal Refractivity |
33.75 to 67.50 D (step: 0.12/0.25 D) |
Degree of Corneal Astigmatism |
0 to ±10 D (step: 0.12/0.25 D) |
Astigmatism Axis Angle |
0° to 180° (step1°/5°) |
PD Measurement |
0 to 85 mm (step: 1 mm) |
Pupil Diameter Measurement |
2 to 8.5 mm (step: 0.1 mm) |
Corneal Diameter Measurement |
2 to 14 mm (step: 0.1 mm) |
Accommodation Measurement |
Available |
Retroillumination Function |
Retroillumination images can be observed and stored in memory (with AE function) |
Printer |
The thermal line printer with auto cutter |
Data Output |
LAN/USB2.0/RS-232C (D-Sub 9-pin female) |
Data Input |
USB2.0 |
Monitor |
Swivelling and tilting 10.4-inch touch panel XGA colour LCD |
Power Saving Mode |
Available |
Power Supply |
100-240 V 50/60 Hz |
Power Rating |
90 VA |
Shifting Range |
Front/back: ±16 mm, |
Dimensions |
W277 × L431 × H482 mm |
Weight (Main unit) |
23 kg |
