Xephilio OCT-S1
Xephilio OCT-S1
Canon introduces Xephilio OCT-S1, revolutionary swept source technology allowing wide-field retina imaging of up to 23 mm in a single scan. Xephilio OCT-S1 enables superior penetration of dense objects and provides outstanding tomographic images. The system’s Deep Learning AI technology, Intelligent Denoise, offers a new quality of OCTA images in a single scan with greatly reduced noise, increased details and improved visibility within seconds.
Key Features
Features

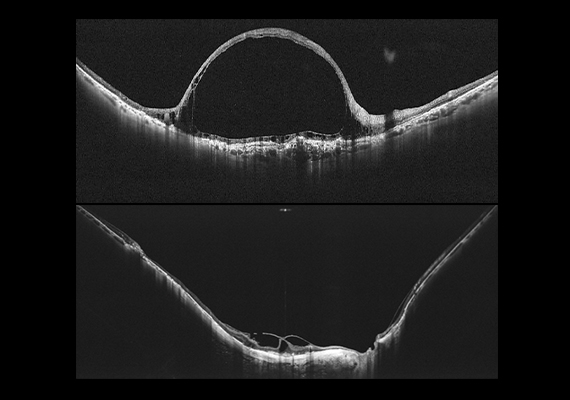

Wide-field Imaging in One Single Capture
With Xephilio OCT-S1 revolutionary swept-source technology, it is possible to capture wide-field images (equalling an 80° viewing angle, up to 5.3 mm depth and 23 mm wide) with superior penetration of dense objects and provides outstanding tomographic images in a single scan. This allows wide-spread non-perfused areas (even small capillaries) to be visualised which is useful in diagnosing diabetic retinopathy and retinal vein occlusion.

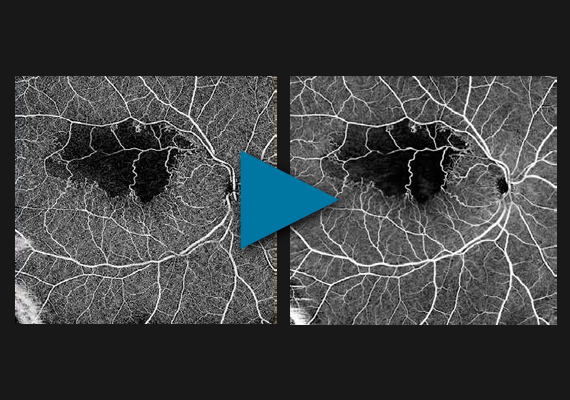

AI Intelligent Denoise
A single click of Canon Artificial Intelligent Noise Reduction Process (Intelligent Denoise), high quality images with low noise can be easily acquired. In addition, this process can be completed in a short time regardless of the size of the image, thereby greatly improved the overall efficiency.

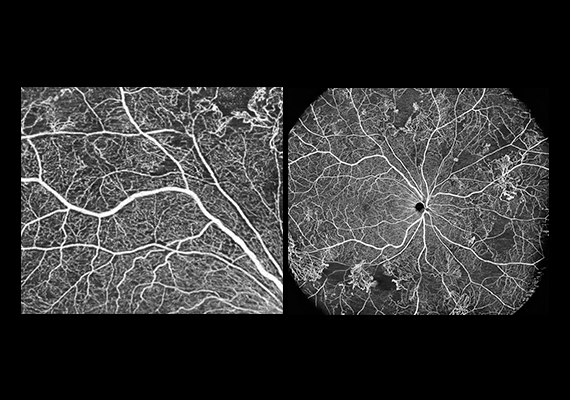

Visualise the Microvasculature of the Retina with Angio Expert
OCT-S1 Angio Expert does not require fluorescein injection or pupil dilation, and the examination takes only seconds. SLO-based real-time tracking minimises artefacts. Sophisticated image post-processing with 3D projection artefact removal enables excellent image quality in every scan. Even the smallest blood vessels can be observed in 2D and 3D. Angio Expert software provides a comprehensive set of manual and automated analyses to cater to every individual user’s need.
Specifications
Specifications
|
Scan Speed |
Max. 100,000 A scan/second |
|
Horizontal Resolution |
30μm |
|
Axial Resolution |
8μm |
|
Light Source Wavelength |
OCT: 1060nm, SLO: 780nm |
|
Small Pupil Size |
Φ3.0mm |
|
Working Distance |
20mm |
|
Retina Observation Method |
Flying spot SLO |
|
SLO FOV (H x V) |
23mm x 20mm |
|
OCT Scan Width |
3~23mm |
|
OCT Scan Depth |
5.3mm |
|
Internal Fixation |
“x” shape display on retina: green |
|
External Fixation Light |
EL-1 (option) |
|
Dimension and Weight |
|
|
Dimension (W x D x H) |
510mm x 330mm x 590mm |
|
Weight |
35kg (main unit only) |
|
OCT Scan Parameters |
|
|
Retina scan mode |
|
|
Custom 3D |
512 x 512 |
|
Multi-cross |
1024 x 1024 |
|
Cross |
1024 x 1024 |
|
Radial |
1024 |
|
OCTA |
Small: 232 x 232 (3 x 3 ~ 8 x 8mm) |
Optical power on cornea < 2.0mW for OCT, 1.0mW for SLO (scanning beam controlled by the laser safety system)
