Coming soon

EOS C80

Lightweight Full-Frame Cinema Camera with RF Mount

The EOS C80 is an ultra-portable, palm-sized powerhouse designed for effortless mobility while delivering exceptional performance. At the heart of it is a 6K full-frame back-illuminated stacked CMOS sensor to provide stunning resolution and lightning-fast signal processing for professional-grade results.

With expanded SDI and Ethernet terminals, this camera is perfectly equipped to meet the rigorous demands of live and virtual production environments.

  • Highly Portable, Compact & Lightweight with RF mount
  • 6K Full-Frame Back-Illuminated Stacked CMOS Sensor
  • 6K 30p RAW and 4K 120p Recording
  • Wide Variety of Interface to Support Virtual Production

6K Full-Frame Back-Illuminated Stacked CMOS Sensor

RF Mount

Operability
Improvement

Full Array of
Interfaces

Compact &
Lightweight

Virtual & Live
Production

Beautiful 6K 30P Movies

The full-frame sensor offers a shallow depth of field and large bokeh for enhanced creative expression. At the same time, faster signal readout minimises rolling shutter distortion during video recording. Coupled with the DIGIC DV 7 processor, it supports high-speed image processing, enabling 6K 30P internal RAW recording and 4K 4:2:2 10-bit recording through 6K oversampling.

6K Back-Illuminated Stacked Full-Frame CMOS Sensor

  1. Enhanced 4K image quality with 6K oversampling1
  2. Supports Dual Pixel CMOS AF II
  3. Low noise & wide dynamic range of 16 stops
  4. Automatic base ISO changing with 3 base ISO (800 / 3200 / 12800)2

1 Recording is possible at up to 6K 30P (RAW) and 4K 120P. When 4K 120P is selected in Super 35mm mode, the angle of view is cropped at approx. 6%.
2 With Canon Log 2/3 and RAW recording at HDMI RAW setting


Full Array of Interfaces

A Diverse Array of Interfaces for Professional Excellence

The newly integrated SDI terminal allows for simultaneous output alongside the HDMI terminal, providing seamless connectivity with a variety of external devices. Additionally, with the camera's built-in Wi-Fi and Ethernet terminal, users can effortlessly operate the camera remotely and monitor its status from a smartphone or computer, unlocking new levels of flexibility and control.

​​​​​​​Professional Audio

Two 3-pin Mini XLR Input

Professional microphones can be attached to the EOS C80's two mini XLR terminals with 48-volt phantom power to record high-definition audio. A 3.5mm microphone input is also available for connecting different microphones.

Audio Control Dials

The EOS C80 features dedicated dials on the back of the camera body for precise audio control, allowing for easy and intuitive adjustment of recording levels for channels 1 and 2.

RF Mount

The RF mount's compact and lightweight nature is attributed to its short back focus. The utilisation of RF lenses delivers highly expressive and high-quality imaging. The RF mount's high-speed communication capabilities allow for better-coordinated control of the camera and lens IS to produce powerful image stabilisation.

PL and EF lenses can be fully utilised with an adapter:

  • Mount Adapter PL-RF
  • Mount Adapter EF-EOS R

*mount adapters are optional accessories

Mount Adapter PL-RF

Mount Adapter EF-EOS R 0.71x

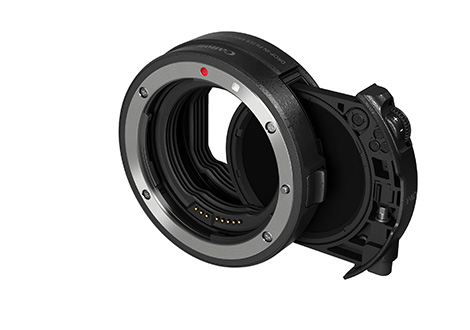

Drop-in Filter Mount Adapter EF-EOS R

with Drop-in Variable Neutral Density Filter

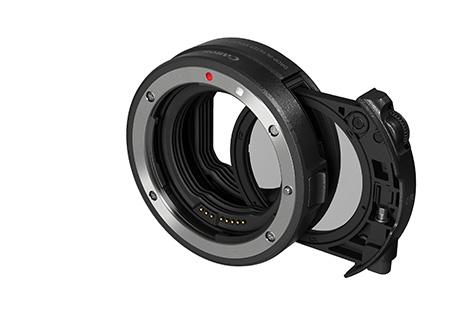

Drop-in Filter Mount Adapter EF-EOS R

with Drop-in Circular Polarizing Filter

Mount Adapter EF-EOS R

Control Ring Mount Adapter EF-EOS R

Extender RF 2x

Extender RF 1.4x

Highly Mobile, Compact & Lightweight Design

The EOS C80's compact and agile body is perfect for capturing dynamic shots, whether handheld, on a gimbal, or in motion. Its integrated grip offers stability and comfort, even for larger hands, ensuring precise control during extended shoots. This design empowers you to focus on your creative vision with confidence, no matter the scenario.

Spectacular 4K Image Quality with 6K Oversampling

Achieve crystal clear high definition 4K video with up to 6k readout oversampling*.
4:2:2 10-bit high-resolution recording is enabled through oversampling of the full-frame 6K sensor during 4K/2K movie recording.

*When using XF-AVC, XF-HEVC S, XF-AVC S recording, full-frame sensor mode, and frame rate of 60P/50P or lower.


Dual Pixel CMOS AF II

High-performance subject detection is made possible by the deep learning-based EOS iTR 1 AF X algorithm, which works in tandem with the incredible speed, accuracy, and field of view of Dual Pixel CMOS AF II. The focusing area is approximately 100% x 100%.

The EOS C80 can now detect human body2 and animal3 through the introduction of EOS iTR AF X.

1 Intelligent tracking and recognition.
2 When eyes, face, or head are hidden during AF tracking, the body is detected and tracking continues.
3 Detection of animals other than dogs or cats is not supported.





High Frame Rates

Get cinematic slow-mo shots of up to 7.5x with with the EOS C80's high quality 4:2:2 10-bit - 2K 180p and 2K/4K 120p*. It also offers continuous autofocus up to 2K/4K 120P, ensuring sharp focus during high-speed action, making it ideal for professionals in dynamic environments.



* When 4K 120P is selected in Super 35mm mode, the angle of view is cropped at approx. 6%.


Three Base ISO

The camera's Auto Selection feature changes between the three base ISO levels depending on the scene, selecting one with a higher S/N ratio while maintaining dynamic range. Users also can manually choose from the three base ISO* levels: ISO 400, ISO 1600 and ISO 6400 .

Using different base ISOs according to scene brightness (ISO sensitivity) helps reduce noise in videography.
*When using C-Log 2/3 & RAW: 800 / 3200 / 12800

Anamorphic Lens Support

When output to an LCD monitor or with MON. / SDI / HDMI, images are cropped to an angle of view of 2.39:1 after desqueezing.

The magnification ratio can be selected from OFF, 2x, 1.8x, or 1.3x in the menu (when shooting at 4K 60/50P, the desqueezing display is at 2K for MON. / SDI / HDMI). Data recorded for metadata can be configured separately from the magnification ratio.

Simultaneous Recording

The EOS C80 comes with dual memory card slots that supports UHS-II SD Cards that are 3x faster than UHS-I SD Cards. This enables:

  • Double recording
  • Simultaneous recording of proxy files
  • Simultaneous recording of different formats
  • Relay recording

Logs that Expands Visual Expression

Canon Log 2

The Canon Log 2 retains details in medium-to-dark areas with film-like characteristics and provides linear output across a broader range. It enables precise exposure control with minimal colour shifts and preserves detail during post-editing, making it ideal for production environments based on Cineon-Log, such as film production.

Canon Log 3

Well-known for being user-friendly, the Canon Log 3 enables users to create videos with as little as basic tone adjustments through grading. Tightening the dark areas reduces the noise in the dark areas without compromising a broad dynamic range.

Combination IS

The EOS C80's In-body Digital IS and the In-lens Optical IS work together through coordinated control to deliver powerful image stabilisation. This is made possible by the RF mount, which allows high-speed communication between the lens and the camera.
Format Codec Intra-frame / Long GOP Sampling Resolution Max. Bit Rate Slow & Fast Motion
Max. Frame Rate
- - 12bit 6000x3164

639Mbps (29.97P LT)
576Mbps (25.00P LT)

30P
4368x2304 678Mbps (59.94P LT)
611Mbps (50.00P LT)
60P
Format Codec Intra-frame / Long GOP Sampling Resolution Max. Bit Rate Slow & Fast Motion
Max. Frame Rate
H.264/AVC Intra-frame 422
10bit
4096 x 2160
3840 x 2160
600Mbps (59.94P)
500Mbps (50.00P)
60P
2048 x 1080
1920 x 1080
300Mbps (59.94P)
250Mbps (50.00P)
120P
1920 x 1080 150Mbps (59.94i)
125Mbps (50.00i)
-
Long GOP 422
10bit
4096 x 2160
3840 x 2160
250Mbps (59.94P/50.00P)
150Mbps (29.97P/25.00P/24.00P/23.98P)
120P
2048 x 1080
1920 x 1080
50Mbps (59.94P/50.00P/29.97P/25.00P/24.00P/23.98P) 180P
1920 x 1080 50Mbps (59.94i/50.00i) -
420
8bit (Proxy)
2048 x 1080 35Mbps (59.94P/50.00P/29.97P/25.00P/24.00P/23.98P) 60P
1920 x 1080 35Mbps (59.94P/59.94i/50.00P/50.00i/29.97P/25.00P/24.00P/23.98P) -
Format Codec Intra-frame / Long GOP Sampling Resolution Max. Bit Rate Slow & Fast Motion
Max. Frame Rate
H.265 / HEVC Long GOP 422
10bit
4096 x 2160
3840 x 2160
225Mbps (59.94P/50.00P)
135Mbps (29.97P/25.00P/24.00P/23.98P)
120P
2048 x 1080
1920 x 1080
50Mbps (59.94P/50.00P/29.97P/25.00P/24.00P/23.98P) 180P
420
10bit
4096 x 2160
3840 x 2160
150Mbps (59.94P/50.00P)
100Mbps (29.97P/25.00P/24.00P/23.98P)
120P
2048 x 1080
1920 x 1080
35Mbps (59.94P/50.00P/29.97P/25.00P/24.00P/23.98P) 180P
420
10bit (Proxy)
2048 x 1080 16Mbps/9Mbps (59.94P/50.00P/29.97P/25.00P/24.00P/23.98P) 60P
1920 x 1080 16Mbps/9Mbps (59.94P/50.00P/29.97P/25.00P/24.00P/23.98P) -
420
8bit (Proxy)
1280 x 720 6Mbps (59.94P/50.00P/29.97P/25.00P/24.00P/23.98P) -
Format Codec Intra-frame / Long GOP Sampling Resolution Max. Bit Rate Slow & Fast Motion
Max. Frame Rate
H.264 / AVC Intra- frame 422
10bit
4096 x 2160
3840 x 2160
600Mbps (59.94P)
500Mbps (50.00P)
60P
2048 x 1080
1920 x 1080
300Mbps (59.94P)
250Mbps (50.00P)
120P
Long GOP 422
10bit
4096 x 2160
3840 x 2160
250Mpbs (59.94P/50.00P)
150Mbps (29.97P/25.00P/24.00P/23.98P)
120P
2048 x 1080
1920 x 1080
50Mbps (59.94P/50.00P/29.97P/25.00P/24.00P/23.98P) 180P
420
8bit
4096 x 2160
3840 x 2160
150Mpbs (59.94P/50.00P)
100Mbps (29.97P/25.00P/24.00P/23.98P)
120P
2048 x 1080
1920 x 1080
35Mbps (59.94P/50.00P/29.97P/25.00P/24.00P/23.98P) 180P
420
8bit (Proxy)
2048 x 1080 16Mbps/9Mbps (59.94P/50.00P/29.97P/25.00P/24.00P/23.98P) 60P
1920 x 1080 16Mbps/9Mbps (59.94P/50.00P/29.97P/25.00P/24.00P/23.98P) -
1280 x 720 6Mbps (59.94P/50.00P/29.97P/25.00P/24.00P/23.98P) -

Improved Vertical UI Operability*

The camera offers a touch-based menu for recording features and LCD brightness settings, providing the same feel as standard horizontal shooting. This feature is particularly useful for producing video for smart devices or digital signage. The camera also supports menu settings and LCD brightness adjustments in vertical shooting, providing an easy-to-read layout similar to standard horizontal shooting. Various settings and controls can be operated with touch.

*compared with EOS C70

Communication Support

IP streaming

With the new SRT protocol support, the EOS C80 simplifies live streaming for news programmes and video websites, making it a highly efficient tool for real-time broadcasting.

This feature seamlessly integrates into existing video production and editing workflows at broadcasters and other platforms, significantly enhancing their streaming capabilities.

Virtual Production Support

The EOS C80 with RF mount system supports virtual production, offering high-speed communication for real-time metadata output. This simplifies video composition and provides continuous correction data linked with zoom for seamless integration of camera footage and CG.

Additionally, it includes a plugin for Unreal Engine and Adobe After Effects, enabling easy import of movie file metadata for accurate and efficient compositing in virtual production workflows.

EOS VR System Support

The EOS C80 allows 180° VR shooting with the RF5.2mm F2.8 L DUAL FISHEYE lens. This technique simplifies VR production by recording with a single sensor, eliminating left/right synchronisation and post-shoot stitching.

Canon offers the EOS VR Utility with Adobe Premiere Pro plugin to improve workflow. These tools enable converting, editing, and producing VR content straightforward, ensuring a smooth shooting to production experience.

Multi-Function Shoe

Sporting a next-generation interface with high-speed communication interface, the Multi-Function Shoe supports various types of accessories by using power supply from the camera. The EOS C80 has two Multi-Function Shoe, one on the main body and another on the handle unit.

XLR Microphone Adapter

Directional Stereo Microphone

Off-camera Shoe Cord


Discover the EOS C80


Specifications

Lens Mount RF Mount Lens No
Sensor 35mm full-frame CMOS sensor SDI Out Yes (BNC terminal x1, 12G/6G/3G/HD-SDI)
Number of Pixels Total pixels: approx. 26.7 megapixels
Effective pixels: up to approx. 19.0 megapixels
MON. No
ISO Sensitivity 160-25600 (Extended: 100-102400) HDMI Yes (Type-A)
BASE ISO 800 / 3200 / 12800 / Auto-change
(Ex.: Canon Log 2, Canon Log 3, RAW recording)
Audio Input Mini-XLR x2 (AES/EBU not supported)
Sensor Mode Full-frame, Super 35mm Crop Ethernet Yes
ND filter Mechanical ND filter (2 / 4 / 6 / 8* / 10 stops*)*With extender USB Yes (USB Type-C) [HOST not supported/no power supply]
Gamma Canon Log 2, Canon Log 3, Canon 709, BT.709 Wide DR, BT.709 Standard, PQ, HLG VIDEO No
Frame Rate 6K 29.97P/25.00P (RAW) [internal recording]
4.3K 59.94P/50.00P (RAW) [internal recording]
4K 59.94P/50.00P (XF-AVC/XF-HEVC S/XF-AVC S)
2K 59.94P/50.00P (XF-AVC/XF-HEVC S/XF-AVC S)
GRIP No
Color Space Cinema Gamut, BT.2020 Gamut, BT.709 Gamut MIC Yes (Φ3.5mm stereo mini jack)
White Balance Auto, sunlight, tungsten, color temperature (2000K to 15000K), settings A/B Headphone Yes (stereo)
Dynamic Range 16 stops REMOTE A (φ2.5mm) Yes (REMOTE terminal)
AF Dual Pixel CMOS AF II REMOTE B (RS- 422) No
Recording format Movies Cinema RAW Light
XF-AVC
XF-HEVC S
XF-AVC S
TC (TIME CODE) Yes (BNC terminal) [doubles as input/output]
Photos JPEG G-LOCK No
Maximum frame rate* (slow & fast, etc.)

*When frame rate exceeds 100P in Super 35mm mode, the angle of view is cropped at approx. 6%.
Full-frame:
6000x3164/30P, 4096x2160/120P. 2048x1080/180P
Super35mm Crop:
4368x2304/60P, 4096x2160/120P, 2048x1080/120P
SYNC No
Recording Format (audio) Linear PCM 24-bit/48kHz/4ch
AAC 16-bit/48kHz/2ch (XF-HEVC S / XF-AVC S)
RET No
Recording Media SD Cards (2 slots) DC-IN 12V Yes (round pin jack x1)
LCD Monitor 3.5-inch LCD 2.76 million dots, high brightness touch panel Battery BP-A30N
(BP-A60N, BP-A30, BP-A60 - optional)
Viewfinder No AC Adapter CA-CP300B
Level Yes (Roll / Tilt) Operating Temperature

Guaranteed performance conditions: Approx. 0 ℃ to 40 ℃ 85% (relative humidity)
Guaranteed operating conditions:Approx. -5 ℃ to 45 ℃ 60%(relative humidity)

Multi-Function Shoe (21 pin) Yes (with power contacts) Dimensions (W x H x D) Approx. 160 x 137.4 x 116mm
Wi-Fi Yes (Internal) Main Body Weight Approx. 1300 g

*1 Has USB Type-C shape, but USB functionality is not available.
*2 One DIN terminal is used for the G-LOCK/SYNC/RET terminal. Function can be switched from the menu.

*Note: All photos and visuals are simulated
