Name of components and information displayed on the screen (PowerShot SX600 HS)

12-Feb-2014
8202014300

Solution

Camera
PowerShot SX600 HS


LensWi-Fi antenna area
MicrophoneFlash
Speaker (Flash up) switch
Zoom lever
Shooting:  (telephoto) / (wide angle)
Playback: (magnify) / (index)
 (N-Mark)*
Shutter buttonTripod socket
LampDC coupler terminal cover
Power buttonMemory card/battery cover
* Used with NFC features

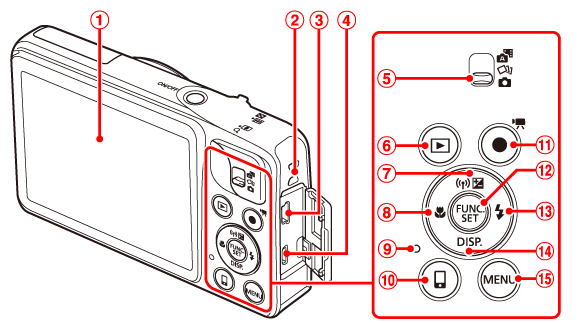

Screen (LCD monitor)Indicator
Strap mount (Mobile device connection)button
AV OUT (Audio/video output) / DIGITAL terminalMovie button
HDMITM teminalFUNC./SET button
Mode switch (Flash) / Right button
(Playback) button (Display) / Down button
(Exposure compensation) / (Wi-Fi) / Up button button
(Macro) / Left button

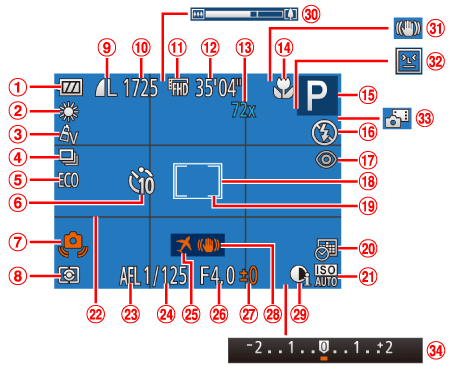

Shooting (Information Display)


Battery levelAF frame
White balanceSpot AE point frame
My ColorsDate stamp
Drive modeISO speed
Eco modeGrid lines
Self-timerAE lock, FE lock
Camera shake warningShutter speed
Metering methodTime zone
Still image compression, ResolutionAperture value
Recordable shots*Exposure compensation level
Movie qualityImage stabilization
Remaining timei-Contrast
Digital zoom magnification, Digital teleconverterZoom bar
Focusing range, AF lockIS mode icon
Shooting mode, Scene iconBlink detection
Flash modeHybrid Auto mode
Red-eye correctionExposure compensation bar
*[ ] mode, indicates the number of shots available.

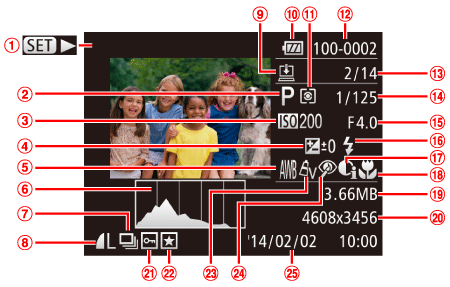

Playback (Detailed Information Display)


NOTE
  • Some information may not be displayed when viewing images on a TV
Movies, High-speed burst, Switch display (GPS information)Current image no. / Total no. of images
Shooting modeShutter speed (still images), Image quality / Frame rate (movies)
ISO speed, Playback speedAperture value
Exposure compensation levelFlash
White balancei-Contrast
HistogramFocusing range
Group playback, Image editing, Digest moviesFile size
Compression (image
quality) / Resolution, MP4 (movies)
Still images: Resolution
Movies: Playback time
Image SyncProtection
Battery levelFavorites
Metering methodMy Colors, Creative Shot effect
Folder number - File numberRed-eye correction


Shooting date/time
