Name of components and information displayed on the screen (PowerShot G5 X)
Solution
PowerShot G5 X
 | Lens |  | Diopter adjustment dial |
 | Lamp |  | Mode dial |
 | Front dial |  | Speaker |
 | Zoom lever Shooting: [  (telephoto)] / [  (wide angle)]Playback: [  (magnify)] / [  (index)] |  | Control ring |
 | Strap mount |  | Microphone |
 | Exposure compensation dial |  |  (N-Mark)*1 |
 | Shutter button |  | Tripod socket |
 | Flash |  | Memory card/battery cover |
 | Hot shoe |  | DC coupler terminal cover |

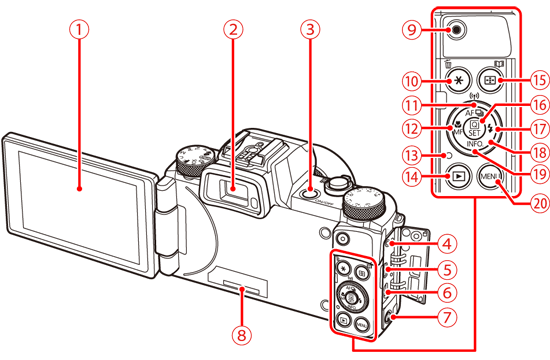

| Screen (LCD monitor)*2 | | [ AF (One Shot/Servo)] /  (Drive mode)] / [  (Wi-Fi)] / Up button |
| Viewfinder | | [  (Macro)] / [  (Manual focus)] / Left button |
| Power button | | Indicator |
| Remote switch terminal | | [  (Playback) ] button |
| DIGITAL terminal | | [  (AF frame selector)] / (Story Highlights)] button |
| HDMI (TM) terminal | | [  (Quick Set menu/Set)] button |
| [  (Mobile Device Connection) ] button | | [  (Flash)] / Right button |
| Serial number (Body number) | | Control dial |
| Movie button |  | [ INFO. (Information)] / Down button |
| [  ] / [  (Single-image erase) button |  | [MENU] button |

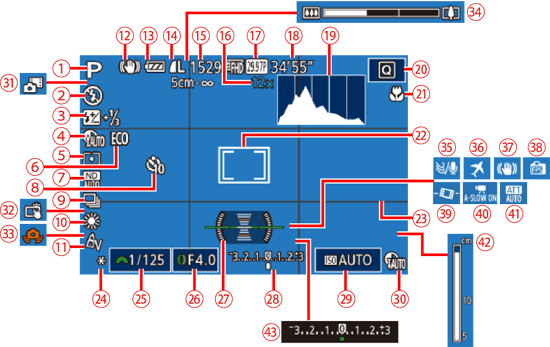

| Shooting mode, Scene icon |  | Grid lines |
| Flash mode |  | AE lock, FE lock |
| Flash exposure compensation / Flash output level |  | Shutter speed |
| Shadow correction |  | Aperture value |
| Metering method |  | Electronic level |
| Eco mode |  | Exposure level |
| ND filter, High ISO NR |  | ISO speed |
| Self-timer |  | DR correction |
| Drive mode, AEB shooting, Focus bracketing |  | Hybrid Auto mode |
| White balance, Mercury lamp correction |  | Touch Shutter |
| My Colors |  | Camera shake warning |
| IS mode icon |  | Zoom bar |
| Battery level |  | Wind filter |
| Still image compression, Recording pixel setting |  | Time zone |
| Recordable shots*3 |  | Image stabilization |
| Zoom magnification, Digital tele-converter |  | Display mode |
| Movie quality |  |  Auto Level |
| Remaining time |  | Auto Slow Shutter |
| Histogram |  | Attenuator |
| Quick Set menu |  | MF indicator |
 | Focus range, AF lock |  | Exposure compensation |
 | AF frame, Spot AE point frame |
] mode, indicates the number of shots available.
NOTE
- Some information may not be displayed when viewing images on a TV.

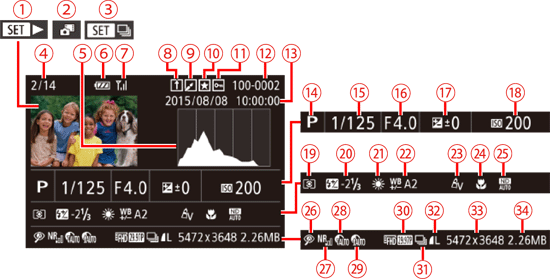

| Movies | | ISO speed |
| Digest movies | | Metering method |
| Group playback | | Flash, Flash exposure compensation |
| Current image no. / Total no. of images | | White balance |
| Histogram | | White balance correction, Mercury lamp correction, Creative Shot effect |
| Battery level | | My Colors |
| Wi-Fi signal strength | | Focus range |
| Image Sync | | ND filter |
| Image editing, Movie compression | | Red-eye correction, Short clip playback effect |
| Favorites | | High ISO NR |
| Protection | | DR correction |
| Folder number - File number | | Shadow correction |
| Shooting date/time | | Image quality / Frame rate (movies) |
| Shooting mode | | Group playback |
| Shutter speed | | Compression (image quality) / Recording pixel setting, Digest movies, RAW, MP4, Albums |
| Aperture value | | Still images: Recording pixel setting Movies: Playback time |
| Exposure compensation level | | File size |
