How to import images to Digital Photo Professional Express (Wi-Fi Connection) (EOS M200)
Solution
When the camera and iPad are connected via Wi-Fi, the images on the camera can be imported to the iPad and displayed in Photo Professional Express. The two ways to import images are as follows.
- Use Digital Photo Professional Express to import JPEG images/RAW (CR3) images
- Use Camera Connect to import JPEG images/RAW (CR3) images
IMPORTANT
- It is recommended to save the images imported to Digital Photo Professional Express to a memory card or another location other than the iPad, should there be a need to use the images outside of Digital Photo Professional Express.
- Before connecting the camera, you must install the free Camera Connect app to the iPad, which can be downloaded from the App Store.
- Use Camera Connect version 2.5.20 or over.
- See "Related Information" for details on what iPad can be connected to the camera via Wi-Fi.
- Interface or functions of Digital Photo Professional Express or Camera Connect are subject to change, for application improvements or update. In such a case, features may differ from sample screens or operation instructions in this explanation.
NOTE
- Procedures starting with an
illustration, are steps for the iPad. procedures starting with a
illustration, are steps for the camera. - Keep your fingers or other objects off the Wi-Fi antenna area. Covering this may decrease the speed of your image transfers.
- Depending on the condition of the network you are using, it may take a longer time to transfer images.
- A memory card must be in the camera for the connection.
1. Install Camera Connect. 2. Open [ Settings ] on iPad, make sure the [ Airplane Mode ] is [ OFF ]. 3. Turn the camera on.
4. Press the <
> button.
5. Press the <
> <
> buttons to select the [
] tab, and press <
>.
6. Press the < > < > buttons and select the [ 1 ] tab.
7. Press the <
> <
> buttons to select [ Wi-Fi/Bluetooth connection ], and press < >.

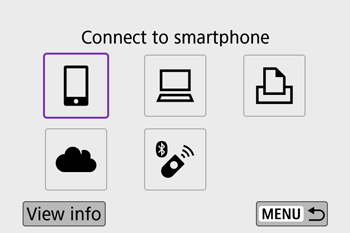

8. Press the < > < > buttons to select [ Connect to smartphone ], and press < >.
NOTE
- If the history is displayed, switch the screen with the < > < > keys.
9. Press the < > < > buttons to select [ Add a device to connect to ], and press < >.

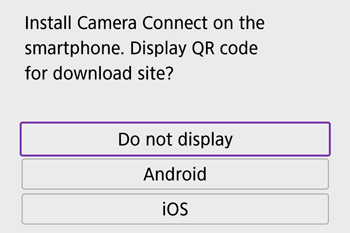

10. Press the < > < > buttons to select [ Do not display ], and press < >.

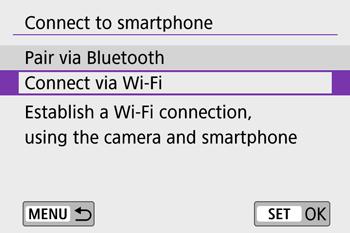

11. Press the < > < > buttons to select [ Connect via Wi-Fi ], and press < >.
12. The SSID (
) and password (
) will be displayed on the screen.
13. Open [ Settings ] on the iPad, select [ Wi-Fi ] (
) to confirm the SSID (
) is the same as the one displayed on the camera screen, and tap to select.
14. Input the same Password as displayed on the camera ( ) and tap [ Join ] ( ).
15. Open Digital Photo Professional Express. 16. Tap [Import from Canon Camera Connect (RAW/JPEG)] from [
] on the upper left hand.
NOTE
- If Camera Connect is not installed, the App Store page will be displayed. In order to connect the camera to the iPad using Wi-Fi, the connection must be made through Camera Connect. Please install Camera Connect first.
17. Tap [ OK ].

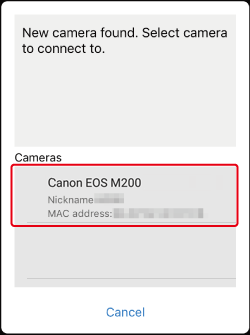

18. Tap [ Canon EOS M200 ].

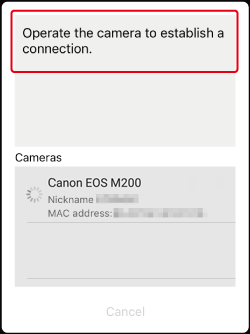

19. Confirm that [ Operate the camera to establish a connection ] is displayed.

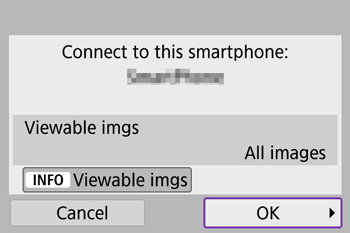

20. Press the < > < > buttons to select [ OK ] and press < >.
21. [ Wi-Fi on ] will be displayed on the camera screen. 22. Tap [ Images on camera ].
23. Tap [ Select ].
24. Tap on the imported images to select images. - Selected images will have a
displayed (). - Tap on [
] to select all. - After selecting, tap on
().
25. Select image size, and tap [ OK ].
26. The selected images will be imported into Digital Photo Professional Express.
27. Once the images have been imported, tap [ Open linked app ].
28. Tap [ Yes ].
29. Digital Photo Professional Express will open, tap [ OK ].
30. The imported images will be displayed in the thumbnails screen in Digital Photo Professional Express.
1. Install Camera Connect. 2. Open [ Settings ] on iPad, make sure the [ Airplane Mode ] is [ OFF ]. 3. Turn the camera on. 4. Press the < > button. 5. Press the < > < > buttons to select the [ ] tab, and press < >.
6. Press the < > < > buttons and select the [ 1 ] tab. 7. Press the < > < > buttons to select [ Wi-Fi/Bluetooth connection ], and press < >.
8. Press the < > < > buttons to select [ Connect to smartphone ], and press < >.NOTE
- If the history is displayed, switch the screen with the < > < > keys.
9. Press the < > < > buttons to select [ Add a device to connect to ], and press < >. 10. Press the < > < > buttons to select [ Do not display ], and press < >. 11. Press the < > < > buttons to select [ Connect via Wi-Fi ], and press < >. 12. The SSID ( ) and password ( ) will be displayed on the screen. 13. Open [ Settings ] on the iPad, select [ Wi-Fi ] ( ) to confirm the SSID ( ) is the same as the one displayed on the camera screen, and tap to select. 14. Input the same Password as displayed on the camera ( ) and tap [ Join ] ( ). 15. Go to home screen, and open Camera Connect.
16. Tap [ Canon EOS M200 ]. 17. Confirm that [ Operate the camera to establish a connection ] is displayed. 18. Press the < > < > buttons to select [ OK ] and press < >. 19. [ Wi-Fi on ] will be displayed on the camera screen. 20. Tap [ Images on camera ] .
21. Tap [ Select ]. 22. Tap on the imported images to select images. - Selected images will have a displayed ().
- Tap on [ ] to select all.
- After selecting, tap ().
23. Tap [Digital Photo Professional Express], to choose and tap [ Select ].
24. Select image size, and tap [ OK ]. 25. The selected images will be imported into Digital Photo Professional Express. 26. Once the images have been imported, tap [ Open linked app ]. 27. Tap [ Yes ]. 28. Digital Photo Professional Express will open, tap [ OK ]. 29. The imported images will be displayed in the thumbnails screen in Digital Photo Professional Express.Use the on-screen keyboard to enter information. Note that the length and type of information you can enter varies depending on the function you are using.
| Input area, for entering text |
| Cursor keys, for moving in the input area |
 Current no. of characters/no. available |
 Keyboard |
 Switch input modes |
 Space |
 Delete a character in the input area |
 Finish the text entry |
- To move the cursor within , turn the <
> dial. - To move within and –, use the <
> cross keys. - Press < > to confirm input or when switching input modes.
